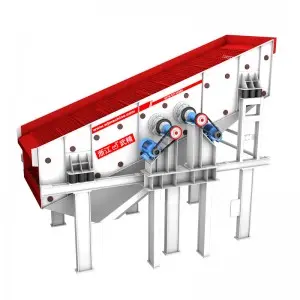

In the field of industrial screening, as a core component that directly contacts materials, the performance state of the screen mesh directly affects production efficiency and product quality. The YKJ/YKR series vibrating screens are widely used in various production lines due to their highly efficient screening capacity. Adjusting the tension of the screen mesh and preventing damage are the two key elements to ensure the stable operation of the equipment.
Screen tension: An invisible factor affecting the screening effect
The tension of the screen mesh may seem like a simple mechanical adjustment issue, but in fact, it has a profound impact on the screening process. Appropriate tension can ensure that the screen remains in the best working condition during vibration, while improper adjustment may trigger a series of chain reactions.
The relationship between tension and screening efficiency
When the tension of the screen is too loose, materials are prone to accumulate on the screen surface, resulting in uneven screening. This situation is particularly prone to occur when handling fine-grained materials. Loose screens can make fine particles more likely to penetrate the screen holes, causing product gradation imbalance. On the contrary, although overly tensioned screens may seem more stable, they can actually lead to uneven transmission of vibration energy, and screening blind spots may occur in some areas.
The influence mechanism of tension on the service life of the screen
From a mechanical perspective, the screen mesh is subjected to complex alternating stresses during vibration. Moderate tension can ensure that these stresses are evenly distributed on the surface of the screen, while improper tension will cause local stress concentration. If it remains in this state for a long time, the screen is prone to metal fatigue and eventually breaks. Statistics show that the early failure of screens caused by tension issues accounts for more than 35% of the total failure rate.
Professional methods for scientifically adjusting the tension of the screen mesh
System check before adjustment
Before adjusting the tension, a comprehensive inspection of the entire screen system is required. First, it is necessary to confirm the flatness of the screen frame. Any deformation exceeding 0.5mm May affect the tensioning effect. Secondly, it is necessary to check the fit between the screen mesh and the support beam to ensure that there are no foreign objects blocking it. Finally, it is necessary to verify the integrity of all fasteners, including bolts, washers and other fasteners.
Key points of step-by-step adjustment technology
Initial positioning: Place the screen at the predetermined position and roughly fix it first to ensure that the screen is basically aligned with the screen frame.
Progressive tensioning: The adjustment principle of “small amount and multiple times” is adopted, with each tightening amplitude not exceeding 1/4 turn. The ideal tensioning degree is achieved through multiple cycles.
Tension balance: Pay special attention to the tension balance in the diagonal direction. Use professional tools to detect the tension difference around to ensure that the deviation does not exceed 15%.
Final fixation: After achieving the desired tension, the final tightening is carried out according to the specified torque value, usually in a cross-shaped tightening sequence.
Verification method for tension
After the adjustment is completed, the tensioning effect needs to be verified through various methods. Visual inspection is the most direct method. A qualified screen should present a uniform planar state without obvious waves or depressions. A more precise approach is to use a tensiometer to measure the tension value at a specific point, or to observe the dynamic response characteristics of the screen through vibration tests.
Prevention and control strategies for screen mesh damage
Diagnosis of common damage patterns
Screen mesh damage usually manifests in several typical patterns: edge tearing is mostly caused by installation stress; Middle rupture is often related to material impact. Mesh deformation is mostly the result of long-term wear and tear. By observing the morphological characteristics of the damage, the root cause of the problem can be accurately determined.
Systematic preventive measures
Pretreatment measures: Set up buffer plates or pre-screening devices at the feeding end of the screen to reduce the direct impact of large pieces of material on the screen.
Material selection: Choose the appropriate screen material based on the characteristics of the material. For example, when handling high-hardness materials, use wear-resistant alloy screens.
Operation optimization: Control the feeding speed and material distribution to avoid local overload.
Maintenance system: Establish a regular inspection system, with a focus on the high-stress areas of the screen.
Key points of maintenance and upkeep practice
Special attention should be paid to the cleaning of the screen mesh during daily maintenance to prevent local stress concentration caused by material adhesion. For vulnerable parts, local reinforcing measures can be adopted, such as installing protective strips or using thickened screens. At the same time, a complete maintenance record should be established to track the usage status and replacement cycle of the screen mesh.
Technological upgrading and innovation directions
With the development of industrial technology, the maintenance technology of screens is also constantly improving. The application of new screen materials has significantly enhanced their wear resistance and impact resistance. The introduction of intelligent monitoring technology enables real-time monitoring of the screen status, and potential problems can be warned in advance through vibration analysis and stress monitoring.
In terms of tension adjustment, the application of automatic adjustment devices has enhanced the adjustment accuracy and efficiency. These technological innovations offer new solutions for enhancing the service life of screens and the reliability of equipment.
Summary: Establish a comprehensive screen mesh management system
Effective screen management requires comprehensive consideration from multiple dimensions. Through scientific tension adjustment, systematic damage prevention and standardized maintenance and care, the service life and operational reliability of the screen can be significantly improved. This can not only reduce production costs, but also improve production efficiency and product quality.
For equipment managers, mastering these professional technical points and establishing a complete maintenance system are the keys to ensuring the long-term stable operation of vibrating screens. Constantly optimizing and improving these measures in practice will create greater economic benefits and competitive advantages for the enterprise.
