Durability of Jaw Crusher

Durability of Jaw Crusher

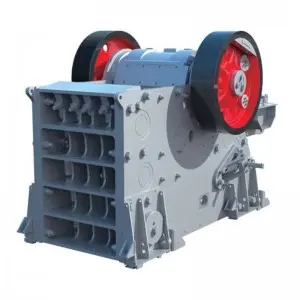

As core crushing equipment in industries such as mining, construction, and infrastructure, the durability of jaw crushers directly determines downstream customers’ operating costs, production efficiency, and return on investment. In purchasing decisions, durability is no longer just a “nice-to-have” but a core consideration that must be prioritized. A highly durable jaw crusher not only reduces downtime and maintenance costs and lowers spare parts replacement costs, but also helps buyers establish a stable supply chain reputation and gain a competitive advantage in the fierce market. This article will deeply analyze the key factors influencing jaw crusher durability from four perspectives: material, structural design, core technology, and maintenance system.

I. The Cornerstone of Durability: High-Specification Materials Are the “First Line of Defense”

Jaw crushers operate in environments characterized by high impact, constant friction, and harsh operating conditions (such as high temperature, humidity, and dust). The choice of material directly determines the equipment’s resistance to wear and fracture. For professional buyers, identifying the differences between good and bad material specifications is the first step in assessing equipment durability.

1. Crushing Chamber Core Components: The Performance Competition Between High-Manganese Steel and Alloys
The crushing chamber is the core area of ​​the jaw crusher that comes into direct contact with the material. The material selection for its liner and jaw plates is particularly critical. Currently, the mainstream material options on the market fall into two categories:

High-manganese steel (such as Mn13 and Mn18): Traditional high-manganese steel, thanks to its excellent work-hardening properties, excels in crushing medium-to-low-hardness materials (such as limestone and gypsum). When the material impacts the liner surface, the surface metal rapidly hardens to form a wear-resistant layer, while the inner layer retains excellent toughness, effectively preventing fracture. However, it should be noted that when crushing high-hardness materials (such as granite and basalt), the hardened layer of high-manganese steel wears more rapidly, significantly shortening its service life. Therefore, buyers should carefully select the right material based on the material types of their downstream customers.

Alloy composite materials (such as high-chromium alloys and wear-resistant cast iron composites): Alloy composite materials are a preferred choice for high-hardness and highly abrasive materials. This type of material incorporates alloying elements such as chromium, molybdenum, and nickel into the matrix, creating a wear-resistant phase with a hardness exceeding HRC60 while maintaining the matrix’s toughness. For example, one brand uses a composite structure of a “high-chromium alloy liner + high-manganese steel matrix.” When crushing granite, this composite structure increases its service life by 2-3 times compared to a pure high-manganese steel liner, significantly reducing spare part replacement costs for downstream customers.

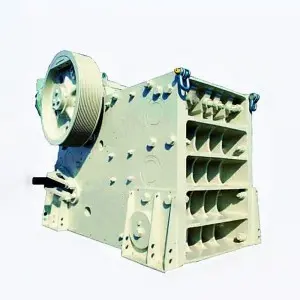

2. Frame and Drive Components: Carbon Steel vs. Cast Steel: “Strength Selection”

The frame, as the “skeleton” of the jaw crusher, must withstand the tremendous impact forces (up to hundreds of tons) generated during the crushing process. Its material strength directly determines the overall stability of the equipment. Currently, the mainstream frame materials fall into two categories:

Q355B low-alloy high-strength structural steel: This type of steel has a yield strength of 355 MPa and a tensile strength of 470-630 MPa. It also offers excellent weldability and is suitable for small and medium-sized jaw crushers (processing capacity ≤100 t/h). When purchasing, pay attention to the steel’s flaw detection report to avoid cracking of the frame due to welding defects.

ZG270-500 cast steel: For large jaw crushers (processing capacity >100t/h), cast steel frames offer superior impact resistance due to their integral molding and lack of welding stress. Through quenching and tempering (quenching followed by high-temperature tempering), cast steel can achieve a hardness of HB180-220, ensuring strength while facilitating subsequent processing. For example, a large jaw crusher (PE1200×1500) used for metal ore crushing uses a ZG270-500 cast steel frame. Under 24-hour continuous operation, it boasts a service life of 8-10 years, far exceeding the 5-year upper limit of conventional welded frames.

In addition, the material selection for transmission components (such as eccentric shafts and bearings) is also critical. High-quality eccentric shafts are typically made of 40CrNiMoA alloy structural steel. After quenching and tempering, the hardness reaches HB240-280, providing excellent fatigue resistance. Bearings must be high-load bearings that meet ISO standards (such as SKF and NSK brands). Their rated dynamic load must be at least 30% higher than the design load to prevent machine downtime due to bearing damage.

II. Ensuring Durability: Scientific Structural Design Reduces Failure Risk

In addition to the material, the structural design of a jaw crusher directly affects force transmission efficiency and the stress state of vulnerable parts. An unreasonable structure can lead to localized stress concentrations, accelerating component wear or fracture. For buyers, identifying a “humanized” and “fatigue-resistant” structural design is crucial for evaluating equipment durability.

1. Crushing Chamber Structure: “Deep Cavity + Optimized Engagement Angle” Improves Efficiency and Durability

The structural design of the crushing chamber must balance crushing efficiency and liner life. Traditional shallow-chamber crushing chambers suffer from material slippage and short crushing strokes, leading to severe localized wear on the liner. Modern, optimized deep-chamber crushing chambers offer two major advantages:

Deep-chamber design: The crushing chamber depth is 15%-20% greater than traditional structures, allowing for more material to be accommodated at once, reducing repeated friction between the material and the liner and the frequency of material impact on the liner, thereby extending liner service life.

Optimized mesh angle: The mesh angle (the contact angle between the jaw plate and the material) is adjusted from the traditional 28°-32° to 25°-28°, effectively preventing material jamming and reducing the impact of instantaneous overload on the jaw plate and eccentric shaft caused by jamming, thereby reducing the risk of component breakage. For example, one brand’s “V-shaped deep-chamber + tapered mesh angle” design has extended the liner replacement cycle from three months to five months when processing limestone, while also improving crushing efficiency by 12%.

2. Vibration-Isolating and Sealing Structure: Isolating Impurities and Protecting Core Components

Under harsh operating conditions, impurities such as dust and moisture can easily intrude into the equipment, causing bearing wear and lubricant contamination, ultimately shortening equipment life. A scientific vibration-absorbing and sealing structure effectively addresses this issue:

Multi-pass sealing design: A triple sealing structure consisting of a labyrinth seal, oil seal, and dust seal at the junction of the movable jaw and frame reduces dust intrusion by over 90%. For example, a jaw crusher used for crushing construction waste has extended its bearing replacement cycle from 6 months to 18 months after adopting this sealing structure, significantly reducing maintenance costs.

Vibration-Isolating and Buffering Device: Rubber pads or spring dampers installed at the bottom of the frame absorb 30%-40% of the vibration energy generated during the crushing process, reducing fatigue damage to the frame and foundation. Furthermore, an elastic bushing at the connection between the movable jaw and the eccentric shaft prevents localized stress concentration caused by rigid contact, extending the service life of the eccentric shaft.

3. Quick-Replacement Structure for Wear Parts: Reduced Downtime

Durability is not only reflected in component lifespan but also in ease of maintenance. Rapid replacement of wear parts reduces downtime and improves overall equipment utilization. High-quality jaw crushers feature the following structural optimizations:

Quick-Replacement Liner Bolts: Hydraulically tightened or quick-release bolts enable liner removal without the need for specialized tools, reducing replacement time from the traditional four hours to one.

Split-Shaped Moving Jaw Bearing: The bearing housing and movable jaw body are designed as separate structures, eliminating the need to disassemble the movable jaw body for bearing replacement, significantly simplifying maintenance.

III. Enhanced Durability: Core Technologies Empower “Long-Term Stability”

With the advancement of crushing technology, intelligent and lightweight technologies not only improve equipment efficiency but also fundamentally optimize stress distribution and extend equipment life. When selecting a model, buyers should consider the following core technologies:

1. Intelligent Load Control Technology: Preventing Overload Damage
Overload failure in jaw crushers is one of the main causes of component damage (e.g., eccentric shaft breakage and frame cracking). Intelligent load control technology addresses this issue through the following methods:
Real-time load monitoring: A torque sensor installed on the eccentric shaft or motor monitors the equipment load in real time. When the load exceeds 110% of the rated value, the system automatically issues an alarm.
Adaptive Adjustment: Combined with the feeder’s variable frequency control, this technology automatically reduces the feed rate when the load is too high. If a jam occurs, it automatically reverses the feeder or shuts it down, preventing impact damage caused by hard starts. For example, when processing mixed materials (containing large impurities), a certain intelligent jaw crusher, using load control technology, reduced its overload failure rate from 15% to 3%, extending the frame life by two years.

2. Lightweight Structural Design: Reduces Fatigue

Traditional jaw crushers, driven by strength, often employ “heavy” structures. This results in heavy weight and high inertia, accelerating component fatigue. Modern lightweight design is optimized through the following methods:

Finite Element Analysis (FEA) Optimization: Using FEA software to perform stress analysis on components such as the frame and movable jaw, while ensuring strength, redundant material is removed (e.g., hollowing out non-stressed areas). This can reduce equipment weight by 10%-15% and mitigate the impact of inertia on transmission components.

Use of High-Strength Aluminum Alloy: Using high-strength aluminum alloy in non-stressed components (such as the guard and operating platform) reduces weight and improves corrosion resistance (particularly suitable for humid and coastal areas).

3. Wear-Resistant Coating Technology: Extending the Life of Consumable Parts
For highly abrasive materials, in addition to selecting high-quality materials, wear-resistant coating technology can further extend the life of consumable parts:

Plasma Spray Coating: A tungsten carbide (WC) or chromium carbide coating is sprayed onto the liner surface. The coating achieves a hardness exceeding HRC70 and offers wear resistance 3-5 times greater than traditional high-manganese steel, making it suitable for crushing highly abrasive materials such as quartz sand and iron ore.

Ceramic Composite Coating: Thermal spraying is used to create an alumina ceramic coating on the jaw plate surface. This coating offers excellent wear and corrosion resistance, and its strong bond to the substrate prevents detachment.

IV. Evaluating Equipment Value from the Perspective of “Durability”

When selecting a high-durability jaw crusher, a comprehensive evaluation should be conducted based on four key aspects: material verification, structural inspection, technical certification, and case studies to avoid falling into the “low-price trap”:

1. Material Verification: Request Authoritative Test Reports

Require suppliers to provide material test reports for key components (such as liners, frames, and eccentric shafts). These reports should include chemical composition analysis (e.g., manganese content for high-manganese steel, alloying element content for alloy steel), and mechanical property testing (e.g., hardness, tensile strength, and impact toughness).

Prefer suppliers with ISO 9001 quality management system certification, CE certification (for the European market), and CSA certification (for the North American market) to ensure that their materials meet international standards.

2. Structural Inspection: On-site Inspection or Video Factory Inspection

If conditions permit, conduct an on-site inspection of the supplier’s production line, focusing on the frame weld quality (for the absence of pores and cracks), the integrity of the sealing structure (for the presence of multiple seals), and the ease of replacement of wearing parts. If an on-site inspection is not possible, ask the supplier to provide a video detailing the equipment’s structure (e.g., liner installation method, bearing seal structure), and confirm whether it features quick-install and quick-disinstall features.

3. Technical Certification: Focus on Patents and Industry Case Studies

Ask the supplier whether they hold patents for core technologies (e.g., intelligent control, lightweight structure), and request patent certificates.

Request industry application examples of similar equipment (e.g., specific projects in mining or construction) to understand the equipment’s service life and maintenance cycles under actual operating conditions (e.g., liner replacement frequency, and whether the frame exhibits cracking).

4. After-Sales Service: Ensuring Long-Term Durability

Confirm whether the supplier offers global spare parts availability (e.g., having a spare parts warehouse in key markets) to avoid extended downtime due to spare parts shortages.

Inquire whether they provide installation and commissioning guidance, operator training, and regular inspection services (e.g., equipment inspections performed once or twice a year). Professional after-sales service can help downstream customers use the equipment correctly and extend its service life.
